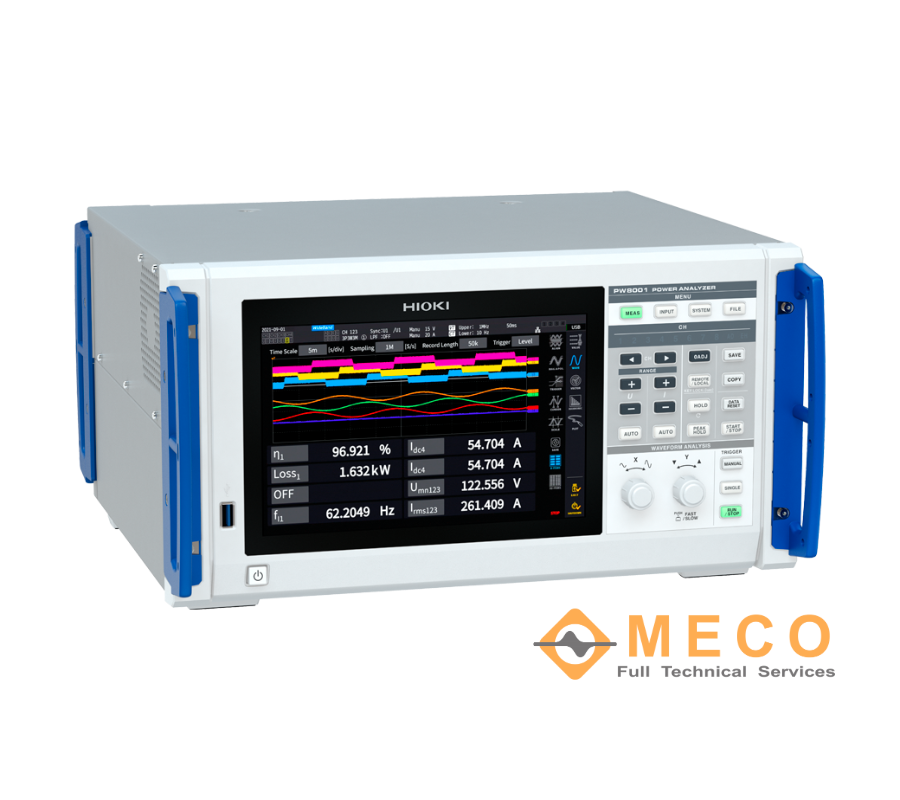

Máy phân tích công suất HIOKI PW8001
Liên hệ
- Công suất: 54kW
- Điện áp: 0~1200V
- Dòng điện: 0~2160A
- Giao tiếp: LAN/ USB/ RS232/ GPIB/ CAN/ Analog control
Các thông số chính của máy phân tích công suất HIOKI PW8001
Kiểu đo: 1 pha – 2 dây, 1 pha – 3 dây, 3 pha – 3 dây, 3 pha – 4 dây
Số kênh: tối đa 8 kênh
Loại ngõ vào: card U7001 2.5 MS/s
card U7005 15 MS/s
Dải tần số đo: U7001: DC, 0.1 Hz to 1 MHz
U7005: DC, 0.1 Hz to 5 MHz
Tốc độ lấy mẫu: U7001: 2.5 MHz, 16-bit
U7005: 15 MHz, 18-bit
Tốc độ cập nhật dữ liệu: 10 ms, 50 ms, 200 ms
| Model | PW8001+U7005 | PW8001+U7001 | PW6001 | PW3390 | |
| Applications | For measurement of SiC and GaN inverters and reactor/transformer loss | For measurement of
high-efficiency IGBT inverters and solar inverters |
For measurement of high-efficiency IGBT inverters | For portability and high accuracy | |
| Độ chính xác cơ bản | Basic accuracy for 50/60 Hz power*1 | ±(0.01% + 0.02%) | ±(0.02% + 0.05%) | ±(0.02% + 0.03%) | ±(0.04% + 0.05%) |
| Accuracy for DC power*1 | ±(0.02% + 0.03%) | ±(0.02% + 0.05%) | ±(0.02% + 0.05%) | ±(0.05% + 0.07%) | |
| Accuracy for 10 kHz power*1 | ±(0.05% + 0.05%) | ±(0.2% + 0.05%) | ±(0.15% + 0.1%) | ±(0.2% + 0.1%) | |
| Accuracy for 50 kHz power*1 | ±(0.15% + 0.05%) | ±(0.4% + 0.1%) | ±(0.15% + 0.1%) | ±(0.4% + 0.3%) | |
| Measurement | Measurement frequency band | DC, 0.1 Hz to 5 MHz | DC, 0.1 Hz to 1 MHz | DC, 0.1 Hz to 2 MHz | DC, 0.5 Hz to 200 kHz |
| Number of power measurement channels | 1 to 8 channels,
specify U7001 or U7005 when placing an order (mixed available) |
1 to 6 channels,
a specify when ordering |
4 channels |
||
| Voltage, current
ADC sampling |
18-bit,
15 MHz |
16-bit,
2.5 MHz |
18-bit,
5 MHz |
16-bit,
500 kHz |
|
|
Voltage range |
6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V |
6 V, 15 V, 30 V, 60 V, 150 V,
300 V, 600 V, 1500 V |
15 V, 30 V, 60 V, 150 V,
300 V, 600 V, 1500 V |
||
|
Dải |
100 mA to 2000 A*2 |
probe1:
100 mA to 2000 A*2 probe2: 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V |
probe1:
100 mA to 2000 A*2 probe2: 100 mV, 200 mV, 500 mV, 1 V, 2 V, 5 V |
100 mA to 8000 A*2 |
|
| Data update rate | 1 ms, 10 ms, 50 ms, 200 ms | 10 ms, 50 ms, 200 ms | 50 ms | ||
| Common-mode rejection ratio (CMRR) | 50/60 Hz: 120 dB or greater 100 kHz: 110 dB or greater | 50/60 Hz: 100 dB or greater 100 kHz: 80 dB typical | 50/60 Hz: 100 dB or greater 100 kHz: 80 dB or greater |
50/60 Hz: 80 dB or greater |
|
| Temperature coefficient | 0.01%/°C | 0.01%/°C | 0.01%/°C | ||
|
Voltage input method |
Photoisolated input,
resistor voltage division |
Isolated input,
resistor voltage division |
Photoisolated input,
resistor voltage division |
Isolated input,
resistor voltage division |
|
| Current input method | Isolated input from current sensor | Isolated input from current sensor | Isolated input from current sensor | ||
| Current input | External current sensor input
Power supplied to external current sensor |
Yes (ME15W) | Yes (ME15W, BNC) | Yes (ME15W, BNC) | Yes (ME15W) |
|
Yes |
Yes |
Yes |
|||
| Current sensor
phase shift calculation |
Yes (auto) |
Yes |
Yes |
||
| Voltage input |
Maximum input voltage
Maximum rated line-to-ground voltage |
1000 V,
±2000 V peak |
1000 V AC, 1500 V DC,
±2000 V peak |
1000 V,
±2000 V peak (10 ms) |
1500 V,
±2000 V peak |
| 600 V CAT III
1000 V CAT II |
600 V AC/1000 V DC CAT III
1000 V AC/1500 V DC CAT II |
600 V CAT III
1000 V CAT II |
600 V CAT III
1000 V CAT II |
||
| Analysis/calculation |
Efficiency and loss calculations |
Yes
(Max.4 each for efficiency and loss, auto*3) |
Yes
(Max.4 each for efficiency and loss) |
Yes
(Max.3 each for efficiency and loss) |
|
| Motor analysis Number of channels Input format | Yes*4 Max. 4 motors
Analog DC, frequency, pulse |
Yes*4 Max. 2 motors
Analog DC, frequency, pulse |
Yes*4 1 motor
Analog DC, frequency, pulse |
||
| Torque meter correction
Harmonics measurement Max. analysis order Synchronization frequency range |
Zero correction, nonlinear correction, friction correction | Zero correction | Zero correction | ||
| Yes (8, for each channel)
500th 0.1 Hz to 1.5 MHz |
Yes (8, for each channel)
500th 0.1 Hz to 1 MHz |
Yes (6, for each channel)
100th 0.1 Hz to 300 kHz |
Yes 100th
0.5 Hz to 5 kHz |
||
| IEC harmonics measurement | Yes*5 | Yes | – | ||
| IEC flicker measurement | Yes*5 | – | – | ||
| FFT spectrum analysis | Yes*5 (DC to 4 MHz) | Yes*5 (DC to 1 MHz) | Yes (DC to 2 MHz) | Yes (DC to 200 kHz) | |
| User-defined calculations
Delta conversion |
Yes | Yes | – | ||
| Yes (Δ-Y, Y-Δ) | Yes (Δ-Y, Y-Δ) | Yes (Δ-Y) | |||
|
D/A output |
Yes*4 20 ch
(waveform output, analog output) |
Yes*4 20 ch
(waveform output, analog output) |
Yes*4 16 ch
(waveform output, analog output) |
||
| Hiển thị | Hiển thị | 10.1” WVGA TFT color LCD | 9” WVGA TFT color LCD | 9” WVGA TFT color LCD | |
| Màn hình cảm ứng | Có | Có | – | ||
| Interface | External storage media | USB 3.0 | USB 2.0 | USB 2.0, CF card | |
| LAN
(100BASE-TX, 1000BASE-T) |
Yes |
Yes |
Yes
(10BASE-T and 100BASE-TX only) |
||
| GP-IB | Yes | Yes | – | ||
| RS-232C | Yes (maximum 115,200 bps) | Yes (maximum 230,400 bps) | Yes (maximum 38,400 bps) | ||
| External control | Yes | Yes | Yes | ||
| Synchronization of multiple instruments |
Yes*5 (up to 4 instruments) |
– |
Yes (up to 8 instruments) |
||
| Optical link | Yes*4*5 | Yes | – | ||
| CAN or CAN FD | Yes *4 | – | – | ||
|
Kích thước và trọng lượng (W×H×D) |
430 mm × 221 mm × 361 mm
(16.93 in.× 8.70 in. × 14.21 in.), 14 kg (493.84 oz.) |
430 mm× 177 mm× 450 mm
(16.93 in.× 6.97 in.× 17.72 in.) 14 kg (493.84 oz.) |
340 mm× 170 mm × 156 mm
(13.39 in.× 6.69 in.× 6.14 in.) 4.6 kg (162.26 oz.) |
||
Thông số kỹ thuật:
Hãy là người đầu tiên nhận xét “Máy phân tích công suất HIOKI PW8001”
– CD (hướng dẫn sử dụng) x 1,
– Dây nguồn x 1
